How to Install a Bestop Trektop NX on your 2007-2017 Jeep Wrangler JK

Tools Required

• Phillips Screwdriver
• Utility Knife
• Ratchet
• Safety Glasses
• 13mm Socket

Shop Parts in this Guide

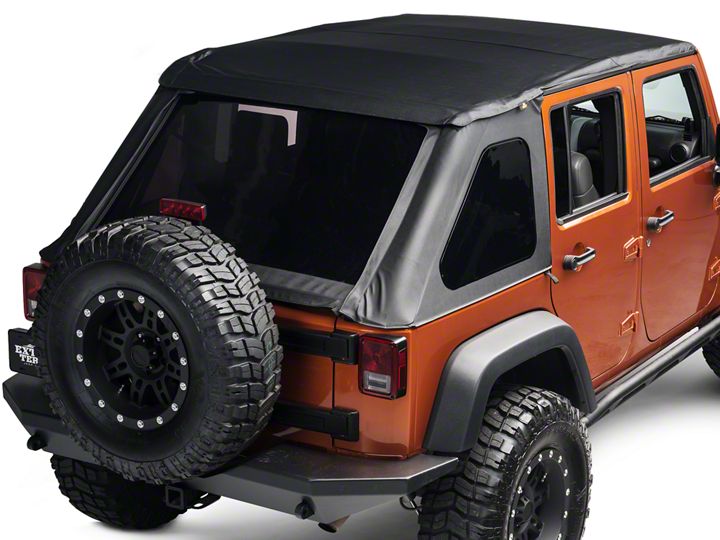

• Bestop Trektop NX Soft Top (07-18 Jeep Wrangler JK 4-Door)

Installation Tips

Earlier you brainstorm installing your new Trektop NX, please read all the instructions thoroughly, and spotter the Bestop installation video. (See Support section on this page)

For a smooth fit:

For easier installation, the summit should be installed at a temperature higher up 72º F. Below this temperature, the fabric may contract an inch or more, making it difficult to fit the vehicle.

Information technology is normal for the cloth to contract and wrinkle when stored in the aircraft carton. Within a few days afterward installation, the material volition relax and the wrinkles will disappear.

Parts List

Section 1 Install Rear Door Surrounds

Step 1

Open the Rear Door. Insert the pin in the bottom of the Rear Door Surround into the hole in the chugalug track behind the rear door opening. Press the channel along the top of the Rear Door Surround around the horizontal sport bar. Repeat on the other side of the vehicle.

Step ii

Insert an M8 10 75mm Knob into the rear position on the Door Surround. Repeat on the other side of the vehicle.

Department 2 Install Front Door Surrounds

Step 1

Open the Forepart Door. Position the Front Door Environs on the sport bar higher up the passenger side door and press it into place equally with the rear.

Step 2

Insert an M8 x 75mm Knob into the front position on the Door Surround. Echo on the other side of the vehicle.

Department three Install Sunrider Bracket

Step i

Identify the Right Sunrider Subclass over the hole where the Front and Rear Door Surrounds join.

Step 2

Secure the Right Sunrider Bracket with the M8 ten 30mm Knob. Echo with the Left Sunrider Subclass.

Section 4 Install Cable Brackets

Pace 1

Unzip the upper rear and rear leg sport bar covers and locate the upper sport bar bolt. Utilize a 13mm socket and ratchet to remove the commodities and gear up it aside to be reused.

Step two

Cut a horizontal slit the same width as the Cablevision Bracket in the sport bar cover 1/four" below the zipper and aligned with the bolt hole.

Stride 3

Apply the commodities that was removed to mount the Cablevision Bracket to the sport bar through the slit in the sport bar cover. Tighten the commodities. Echo on both sides of the vehicle.

Section 5 Install Rear Bow Brackets

Step i

Locate the rear sport bar bolt. Use a 13mm socket and ratchet to remove the bolt and gear up it aside to be reused.

Step two

Loosely install the Rear Bow Subclass with the sport bar bolt. Mark where the bracket contacts the sport bar cover and remove the subclass.

Step 3

Cut a horizontal slit the same width every bit the Rear Bow Subclass at this indicate. Reinstall the Rear Bow Subclass through the cover and tighten the bolt.

Footstep four

Zip all sport bar covers. Echo on both sides of the vehicle.

Section 6 Install Front Tiptop Arch

Step one

Insert one end of the Front end Top Curvation into the slot in the eye of the Front Door Surround on the opposite side of the vehicle from you.

one Push the near cease of the bow inwards as you

ii push up in the eye of the bow from underneath to flex the bow and,

3 insert it into the slot on acme of the Front Door Environment on your side of the vehicle.

Step 2

Remove and dispose of paper pic.

Section vii Install Rear Summit Arch

Step 1

Insert one end of the Rear Top Arch into the slot in the centre of the Rear Door Surround on the reverse side of the vehicle from you.

1 Push the near finish of the bow inwards as y'all

2 button upwards in the middle of the bow from underneath to flex the bow and,

3 insert it into the slot on elevation of the Rear Door Surround on your side of the vehicle.

Step 2

Remove and dispose of paper picture show.

Department 8 Install Tailgate Bar Mounts

Step 1

Orient the Tailgate Bar Mounts on the vehicle. Hook the bottom of i mountain nether the ledge and gyre the mount toward the outside of the vehicle until it clips into place nether the chugalug rail. Repeat this with both Tailgate Bar Mounts.

Section ix Critical STEP - Attach Side Bows to Header/Cloth Assembly

Step 1

Lay the deck, Header Assembly and textile elevation upside downwards on a clean surface. Remove the screws on both left and right sides of the Header Assembly and prepare aside to exist reused.

Step ii

Insert Side Bows into the Header Assembly on each side. Pivot quick release knobs to face toward the inside of the assembly, and align the holes in the Side Bow with the holes in the Header Assembly.

Pace 3

Once the holes are aligned, use two (2) #8x1/2" screws to mount the Side Bow to the lower side of the Header Assembly. Echo on both sides of the vehicle.

Step 4

i Flip the Header Assembly over.

2 Be sure the fabric lays flat after you flip the header assembly over to expose the upper screw holes.

three Insert ii (2) #8x1/2" screws on the upper side of the header assembly. Repeat on both sides of the vehicle.

Step 5

Flip the Header Assembly back over and reinstall the screws removed in Step one. Repeat on the both sides of the Header Assembly.

Department 10 Install Cream Tape Strips and Cream Seals

Step i

Skin the bankroll off the Cream Tape Strips and install them on each side of the Header.

Footstep ii

Pare the backing off the Foam Seal and install it on the passenger side of the Header.

Department 11 Mount Header Associates to Sunrider Bracket

Step 1

Fold the Summit Fabric toward the front of the Header. Identify the Header Associates on vehicle, with the backing upwards and the Side Bows on pinnacle of the Door Surrounds.

Pace 2

Pull back on the quick release knob on the Side Bow and slide the Side Bow over the Sunrider Bracket. Repeat on the other side of the vehicle.

Section 12 Install Middle Bow and Bow Prune

Step one

Slide the Middle Bow into the sleeve inside the Top.

Step 2

Hook the Bow Clip to the Centre Bow to secure the fabric sleeve.

Section 13 Position Center Bow

Step i

Drape the top fabric over the Top Arches and the sport bars.

Step 2

Brand certain the Middle Bow is centered in the vehicle and sits in the slot in the Door Surround on each side. The Middle Bow should fit snug to the soundbar.

Section 14 Open Sunrider & Secure Cable Springs

Stride 1

Open up the Sunrider by lifting the Header Associates abroad from the windshield and pivoting it toward the rear of the vehicle.

Step ii

Run the cablevision under the Door Surroundings screw and through the Cable Bracket. For the initial installation, hook the jump at the end of the cablevision to the outer hole in the Cable Bracket. In later installations, or for a tighter fit, increment spring tension past hooking the spring into one of the inner holes in the Cable Bracket. Echo on both sides of the vehicle.

Section fifteen Install Rear Bow

Step 1

Slide the Rear Bow into the pocket inside the rear of the peak fabric first. Make sure it is centered between the brackets. And then push button the Rear Bow through one bow bracket, and then push dorsum the Rear Bow underneath the opposite rear bow bracket.

Step 2

Secure the J-Hooks on the rear bow flaps to the ends of the Rear Bow. Repeat on both sides of the vehicle.

Section 16 Secure Middle Bow & Shut Sunrider

Footstep 1

Working from inside the vehicle, thread a web strap with snap hook through each buckle at the Middle Bow location. Hook straps under and into the openings in the bottom of the soundbar. Pull the ends of each strap to tighten securely. Brand sure that the Middle Bow is secure in the slots in the Door Surrounds on each side of the vehicle earlier pulling heart straps tight.

Step 2

Close the Sunrider.

Section 17 Set Header Assembly Latches & Install Rear Window

Stride 1

Hook the latches on the Header into the loops on the windshield frame. Do non shut the latches at this fourth dimension - they must remain open. Repeat on both sides of the vehicle.

Step two

Align the J-Slide forth the height edge of the Rear Window with the J-Slide sewn into the rear of the top. Pull down snugly on the rear window until it snaps into J-slide. Slide them together until the rear window is centered in the opening. Leave rear window hanging for now.

Section 18 Install Side Windows

Step 1

Start the zipper along the top of the Side Window with the zipper in the Acme. Merely close the attachment i-2".

Step ii

Engage the Rear Window attachment with the Side Window zipper. Only shut the zipper 1- ii" Echo steps i and 2 on the opposite side of the vehicle.

Stride three

With rear doors open, slip the plastic strip on the forepart of a Side Window into the aqueduct in the Door Surroundings. Repeat with both Side Windows.

Stride iv

Sideslip the plastic strip along the lesser of each Side Window into the channel in the belt rail on each side of the vehicle. Echo on both sides of the vehicle.

Section nineteen Install and Secure Tailgate Bar

Step one

Slide the channel in the Tailgate Bar onto the tubing along the bottom of the Rear Window on the inside.

Pace 2

Slide the Tailgate Bar into the Tailgate Bar Mounts on each side of the tailgate opening.

Department 20 Secure Rear Window

Step 1

Close the zippers on both sides of the Rear Window. Superlative is designed to fit tight and zippers may be difficult to close on the initial installation.

Footstep 2

Wrap the Side Windows over the Rear Window and slip the plastic strips on each Side Window under the Tailgate Bar Mounts on each side of the tailgate.

Department 21 Close Side Window Top Zippers & Secure Header Latches

Step 1

Close the zippers along the tiptop edge of each Side Window.

Step 2

Make certain that the latches on the Header are hooked over the loops in the windshield frame, and close them securely.

Care and Maintenance of your Bestop Product

Fabric: The cloth should be washed oft using lather, warm h2o and a soft bristle brush Rinse with clear h2o to remove all traces of lather. Bestop recommends using Bestop Cleaner (part no. 11201-00) and Bestop Protectant (part no. 11202-00) Bestop Cleaner and Bestop protectant are especially formulated to provide a full cleaning and protection system. Bestop Cleaner safely removes. Bestop Protectant protects against UV-fading, peachy and hardening, and repels dust, grease, clay and mildew.

Windows: Keep windows clean to avoid scratching. DO Non utilize a brush on the windows! Wash with a water-soaked material or sponge and a mild dishwashing detergent. Bestop recommends Bestop Vinyl Window Cleaner (part no. 11203-00), which safely cleans and protects vinyl windows and helps prevent UV damage. NEVER WIPE THE WINDOWS WHEN THEY ARE DRY. Exist conscientious when cleaning snow or frost from the vinyl windows since they are easily scratched and may cleft at low temperatures. DO Not roll the sides or rear window in cold weather. The windows become strong and
will scissure. Cracks acquired by misuse in cold temperatures are non covered under warranty.

Zippers: Keeping zippers cleaned and lubricated with Bestop's Attachment Cleaner (part no. 11206-00) will help prevent damage and proceed the zippers in smooth working status. If a zipper opens behind the slider, the slider may have been spread apart. This problem tin can usually be repaired by using an ordinary pair of pliers to bring the sides dorsum into parallel. Return slider to the end of the zipper in the normal Open up position.

Echo this process until the attachment operates correctly.

H2o: Seeping through at the seams may be stopped by applying 3-1000 Scotchgard® on the inside of the seams. Rips in the cloth may be repaired with Bondex® iron on patches. Atomic number 26 the patches to the Inside of the top, carefully post-obit the Bondex® instructions.

Snaps: Keep snaps cleaned and lubricated with silicone to assistance forestall snaps from sticking to the studs. If a snap does become stuck to a stud, use a screwdriver and GENTLY pry apart to prevent permanent damage to the snap or the top fabric.
